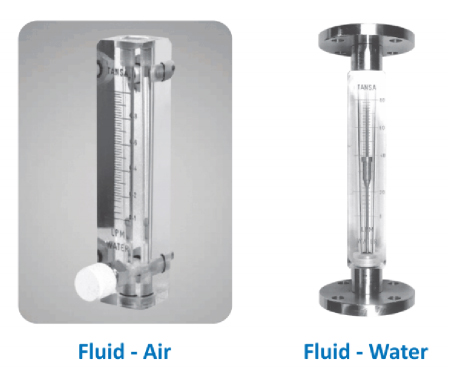

ACRYLIC ROTAMETER - VARIABLE AREA FLOW METER

Operating Principle

Acrylic Rotameter is basically a variable area flow meter. The diffrential pressure across the annulus area is constant and the Flowrate is measured as a function of the position of annulus area. This area is displayed as the position of the ‘Float’ in terms of flow rate on the scale.


Standard Features

  Line Size from 6mm to 80 NB
  Easy to Maintain and replace
  Suitable for in line installation
  Heavy Duty Design With Full Visibility
  Solid Acrylic Block
  Accuracy : +/- 2% of full scale
  Test Presure - 10 Kg / cm²
  Measuring span - 1:10
  Linear scale
  Ranges between - 1-10 LPM to 1500-15000 LPM

FLUID : WATER
MODEL NO.

FLOW RANGE CONNECTION
ACR - 08 20 - 200 LPH 3/8 BSP or 15 NB
ACR - 09 25 - 250 LPH
ACR - 10 30 - 300 LPH
ACR - 11 50 - 500 LPH 1/2 BSP or 15 NB
