Tubular Level Gauge
Click for Zoom

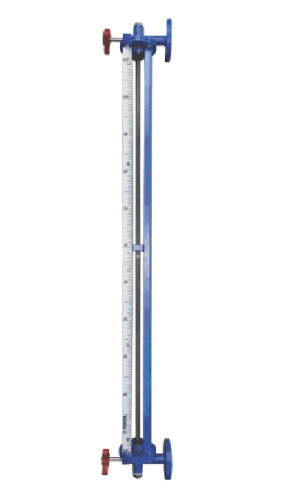

Tubular Level Gauge is one of the simplest forms of level indication used over the years. These level gauges are used in ow or medium pressure conditions. Tubular Level Gauge is mounted on the side of the tank or vessel. It consist of Glass Tube, Protection Frame, Packing material, End blocks, Isolation Valves, Vent and Drain Plugs.


Advantage:

Glass Tube : Borosilicate, 16mm to 28mm Heavy Wall (HW)
Protection Frame : 'C' Channel - CS / SS 304 / SS 316 / FRP
End Blocks : CS / SS 304 / SS 316 / PTFE Lining
Process Connection : Flange / Screwed / Triclover
Isolation Valves : Screwed Bonnet or Bolted Bonnet Isolation Valve with Auto Ball check
Vent and Drain : ½" Plug / ½' Ball Valve / ½" Needle Valve
Packing : PTFE
Connection Orientation : Left / Right / Back / Vertical
Line Size from 15 NB to 5ONB
Center to Center Distance (CCD) : 200mm to 3000mm
Scale : Aluminum / SS / Acrylic
Scale : Acrylic / Aluminum / SS
Max. Hydro Test Pressure: 10 KG/CM2
Max. Temperature: 100 Deg C
